100% Virgin Raw Material Cemented Carbide Drawing Dies for Wires
Drawing
We supply:
Regular carbide pellets
micro-fine grain carbide pellets
finished wire drawing dies
customized carbide nibs
customized carbide dies

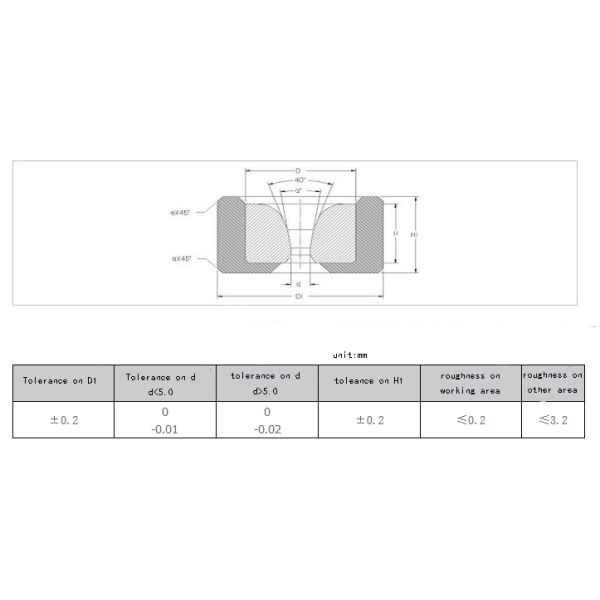

Specification of tungsten carbide wire drawing dies:
Tungsten carbide blank nibs and finished wire drawing dies with
steel case are both available in our company.
| Sr.No | Steel case size OD*H(mm) | Pellet size OD*h(mm) | Carbide die ID(mm) | Tolerance of ID (mm) |
| 1 | 25x12 | 8x6 | 0.6-1.0 | 0/-0.02 |
| 2 | 30x16 | 13x10 | 0.4-2.6 | 0/-0.02 |
| 3 | 32x23 | 16x13 | 0.4-3.5 | 0/-0.02 |
| 4 | 32x23 | 16x14 | 0.4-3.5 | 0/-0.02 |
| 5 | 40x28 | 20x17 | 1.8-5.2 | 0/-0.02 |
| 6 | 40x28 | 22x14 | 1.7-6.0 | 0/-0.02 |
| 7 | 40x28 | 22x18 | 1.7-6.0 | 0/-0.02 |
| 8 | 50x28 | 25x20 | 2.8-9.5 | 0/-0.02 |
| 9 | 70x35 | 30x22 | 5.5-12.5 | 0/-0.02 |
| 10 | 75x35 | 35x25 | 8.5-16.5 | 0/-0.02 |
| 11 | 80x35 | 40x25 | 16.5-24.5 | 0/-0.02 |
| 12 | 110x45 | 50x28 | 16.5-24.5 | 0/-0.02 |
| 13 | 120x50 | 60x35 | 24.5-34.5 | 0/-0.02 |
Main quality grade of carbide wire drawing dies:
| Grade | ISO grade | Grain size (um) | Binder | density (g/cm³) | Hardness
(HRA) | T.R.S (N/m㎡) |
| YG6A | K20 | 0.8 | 6 | ≥15.10 | ≥91.5 | ≥1580 |
| YG6X | K10 | 1.0 | 6 | ≥15.00 | ≥91.0 | ≥1880 |
| YL80.1 | K30 | 1.5 | 8 | ≥14.80 | ≥89.5 | ≥2020 |
| YL80.4 | K30-K40 | 1.5 | 12 | ≥14.50 | ≥88.0 | ≥2600 |
| YL80.2 | K30-K40 | 1.5 | 15 | ≥14.00 | ≥87.0 | ≥2900 |
| YL80.3 | | 1.0 | 20 | ≥13.80 | ≥86.0 | ≥2600 |
Application of tungsten carbide wire drawing dies:
low carbon steel wires
middle carbon steel wires
high carbon steel wires
stainless steel wires
copper wires
silver wires
Package and delivery of tungsten carbide wire drawing dies:
We supply standard export carton and plywood case for our
products,please find pics as below.
Production of tungsten carbide wire drawing dies
RFQ:
Q: Is Chaoyu trading company or manufacturer ?
A: Zhuzhou Chaoyu Industial Co.Ltd is a manufactuer of tungsten
carbide and diamond abrasives since established on
1998,specializing in carbide plates/bushings/rollers/special wear
parts and various diamond grinding wheels.
Q: Has Chaoyu acquired the formost certification of ISO 9001?
A: Chaoyu has been endorsed with the ISO 9001 rating since 2008.
Q: When can I get the offer after sending inquiry?
A:We usually quote within 24 hours after we get your inquiry .If
you are very urgent to get the price please call us or tell us in
your email so that we will regard your inquiry priority.
Q: Could Chaoyu sales staff be reached anytime for assistance
regarding orders or general enquiries ?
A:Our sales staff oprates between 8am-6pm Monday to Saturday.
With 20 years' experience on tungsten carbide production,we supply
standard carbide items and customized carbide parts as your
need,please contact us for more information.
